Transmission Fluid Drain And Refill: Drain

WARNING: Observe due care when draining, as the fluid can be very hot.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    WARNING: Make sure to support the vehicle with axle stands.
  1. Raise and support the vehicle.
  2. Torque: 9 Nm.
    GJ0013260

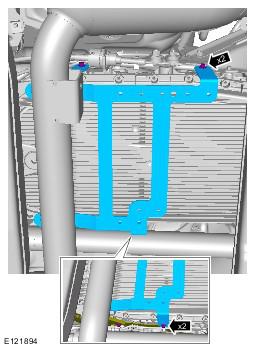

  3. Torque: 9 Nm.
    GJ0013261
  4. Place a container under the transmission.
  5. Wrench, Transmission Filler Plug (307-452)
    GJ0013262
    • Allow the fluid to drain.
    • Discard the component.
    GJ0013263
