Transmission Fluid Pan, Gasket And Filter: Removal

NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Make sure to support the vehicle with axle stands.
  1. Raise and support the vehicle.
  2. See Transmission Fluid Drain and Refill .
  3. Refer to Transmission Support Crossmember - 5.0L article.
  4. See figure.
    GJ0013892
  5. See figure.
    GJ0013893
  6. See figure.
    GJ0011952
  7. See figure.
    NOTE: Install a new gasket.
    GJ0012568
  8. See figure.
    GJ0013260
  9. See figure.
    GJ0013894
  10. See figure.
    GJ0013895

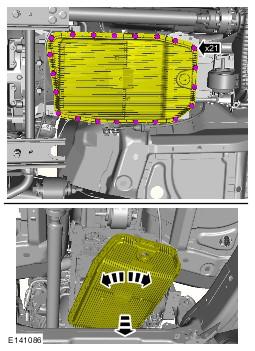

  11. Detach the transmission fluid pan from the transmission.
    CAUTION: Be prepared to collect escaping fluids.
    NOTE: The component cannot be removed at this stage.
    GJ0013896
  12. See figure.
    GJ0013884
  13. See figure.
    GJ0013885
    14. CAUTION: Discard the component.
  14. See figure.
    GJ0013886
    15. CAUTION: Be prepared to collect escaping fluids.
    NOTE: Note the position of the manual park brake release.
    NOTE: Transmission fluid pan shown removed for clarity.
  15. Remove the transmission control module and the transmission fluid pan.
    GJ0013887
  16. See figure.
    GJ0013888
  17. See figure.
    GJ0013889
  18. Remove the transmission fluid pan and the transmission control module.
  19. Remove and discard the gasket.
