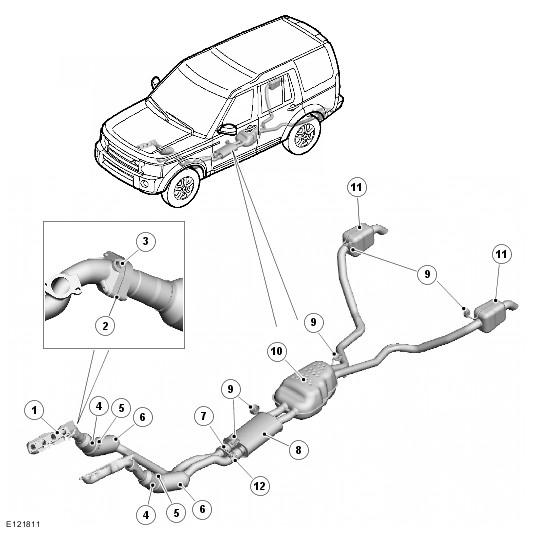

5.0L V8 Component Location - From 2010MY
| Item Number | Description |
|---|---|
| 1 | Exhaust manifold |
| 2 | Flange joint - manifold to front section |
| 3 | Pre-catalyst Heated Oxygen Sensor (HO2S) mounting boss |
| 4 | Pre-catalytic converter |
| 5 | Post catalyst HO2S mounting boss |
| 6 | Main catalytic converter |
| 7 | Flange joint - Right Hand (RH) front section to rear section |
| 8 | Silencer - Front |
| 9 | Mounting rubber (5 off) |
| 10 | Silencer - Center |
| 11 | Silencer - Rear |
| 12 | Clamp joint - Left Hand (LH) front section to rear section |
