Transfer Case Rear Output Shaft Seal V8 5.0L Petrol: Removal

  1. Disconnect the battery ground cable. Refer to Specifications .
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Drain the transfer case fluid. See TRANSFER CASE DRAINING AND FILLING .
  4. Remove the transfer case. See TRANSFER CASE - 5.0L .
  5. With assistance, secure the transfer case with its transmission mating face down on a flat surface.
    • Secure with 2 bolts.
    6. WARNING: Eye protection must be worn.
  6. Remove the shift motor.
    • Remove the 4 bolts.
    • Remove any debris from the bolt holes.
    GJ0013198

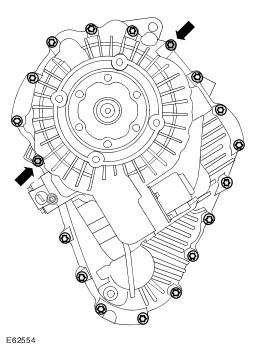

    7. WARNING: Eye protection must be worn.
  7. Remove 17 Torx bolts securing the transfer casings.
    • The two bolts indicated remain fully tightened.
    • Remove any debris from the bolt holes.
    GJ0013199
    8. WARNING: Eye protection must be worn.
    CAUTION: Care must be taken to avoid damage to the mating surfaces.
  8. Remove the rear half of the transfer case.
    • Remove the remaining 2 Torx bolts.
    • Remove any debris from the bolt holes.
    • Use a soft faced mallet.
    GJ0013215

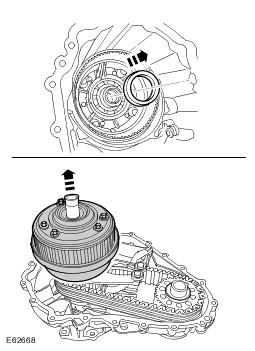

  9. Remove the differential module.
    • Remove the spacer.
    GJ0013216
    10. NOTE: Remove as an assembly.
  10. Remove the clutch, chain and sprocket.
    GJ0013217

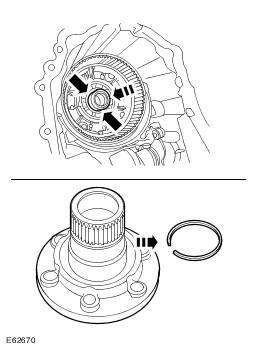

  11. Remove the rear output flange.
    • Compress the snap ring.
    • Press the flange through the bearing.
    • Remove and discard the snap ring.
    GJ0013218
    12. CAUTION: Care must be taken to avoid damage to the seal register and running surface.
  12. Remove the output flange seal.
    GJ0013219
  13. Remove the output flange bearing.
    • Remove the circlip.
    GJ0013220
  14. Release the front half of the transfer case from the flat surface.
    • Remove the 2 bolts.
