Low range actuation sequence

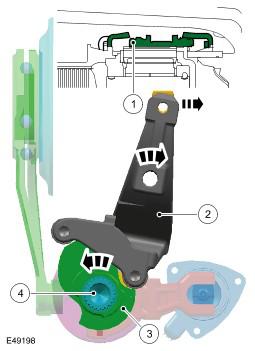

| Item Number | Description |
|---|---|
| 1 | Shifting sleeve |
| 2 | High/low shifting fork |
| 3 | Shifting cam |
| 4 | Motor shaft |
The rotational movement of the motor shaft (4) turns the shifting cam (3) into low range position. The shifting cam then moves the shifting sleeve (1) of the centre differential assembly via the high/low shifting fork (2) into low range position. After the synchronisation sequence, the planetary ring gear is connected to the low range dogteeth, via the shifting sleeve, on the rear carrier assembly. The output speed is then reduced to a ratio of 2.93:1.
