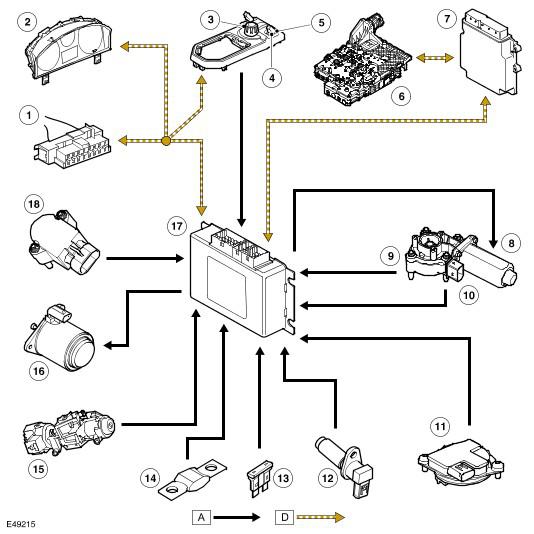

Transfer Box Control Diagram
NOTE:
A = Hardwired; D = CAN bus
| Item Number | Description |
|---|---|
| 1 | Diagnostic socket |
| 2 | Instrument cluster |
| 3 | Terrain response™ |
| 4 | High/Low range selection switch |
| 5 | High/Low range LED |
| 6 | Transmission Control Module (TCM) |
| 7 | Engine Control Module (ECM) |
| 8 | Transfer box motor |
| 9 | Temperature sensor |
| 10 | Hall sensors (speed and direction) |
| 11 | Manual transmission gear position sensor |
| 12 | Output shaft speed sensor |
| 13 | Fuse 24 ignition feed |
| 14 | Fusible link permanent battery feed |
| 15 | Ignition switch |
| 16 | Solenoid |
| 17 | Transfer box control module |
| 18 | High/low position sensor |
