Ride And Handling Optimization: Notes

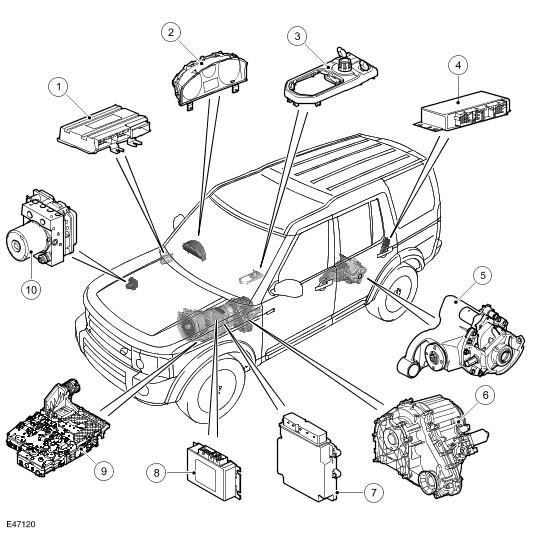

GJ0019432Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Air suspension control module
2 Instrument cluster
3 Terrain Response rotary control and control module
4 Rear differential control module (if fitted)
5 Rear differential
6 Transfer box (center differential and high/low range)
7 Engine control module
8 Transfer box control module
9 Transmission control module (automatic transmission only)
10 ABS module
