Front Suspension: Notes

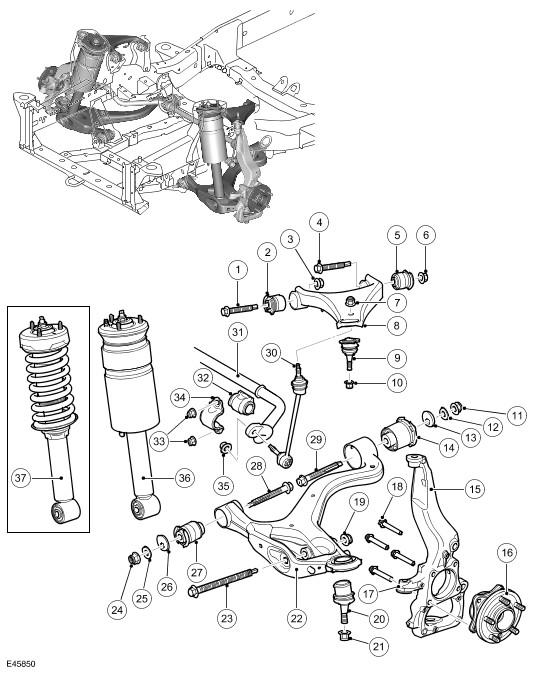

Front Suspension Component Layout
| Item Number | Description |
|---|---|
| 1 | Flanged bolt (Upper control arm forward bush) |
| 2 | Bush - forward (Upper control arm) |
| 3 | Nut (Upper control arm forward bush) |
| 4 | Flanged bolt (Upper control arm forward bush) |
| 5 | Bush - rearward (Upper control arm) |
| 6 | Nut (Upper control arm rearward bush) |
| 7 | Nut (Anti-roll bar link to upper control arm) |
| 8 | Upper control arm |
| 9 | Ball joint (Upper control arm to swivel hub) |
| 10 | Nut (Ball joint to swivel hub attachment) |
| 11 | Nut (Lower control arm rearward bush) |
| 12 | Flat washer |
| 13 | Cam washer (Lower control arm rearward bush) |
| 14 | Bush - rearward (lower control arm) |
| 15 | Wheel knuckle |
| 16 | Wheel hub and bearing assembly |
| 17 | Steering rack attachment |
| 18 | Wheel hub bolt (4 off) |
| 19 | Nut (Damper assembly lower attachment) |
| 20 | Ball joint (Lower control arm to swivel hub) |
| 21 | Nut (Ball joint to swivel hub attachment) |
| 22 | Lower control arm (air suspension version shown) |
| 23 | Bolt (Damper assembly lower attachment) |
| 24 | Nut (Lower control arm forward bush) |
| 25 | Flat washer |
| 26 | Cam washer (Lower control arm forward bush) |
| 27 | Lower control arm forward bush |
| 28 | Bolt (Lower control arm forward bush) |
| 29 | Bolt (Lower control arm rearward bush) |
| 30 | Anti-roll bar link |
| 31 | Anti-roll bar |
| 32 | Anti-roll bar bush |
| 33 | Nut (anti-roll bar bracket) |
| 34 | Anti-roll bar bracket |
| 35 | Nut (anti-roll bar link to anti-roll bar) |
| 36 | Damper assembly (air) |
| 37 | Damper assembly (coil spring) |
NOTE:
Air suspension version shown
