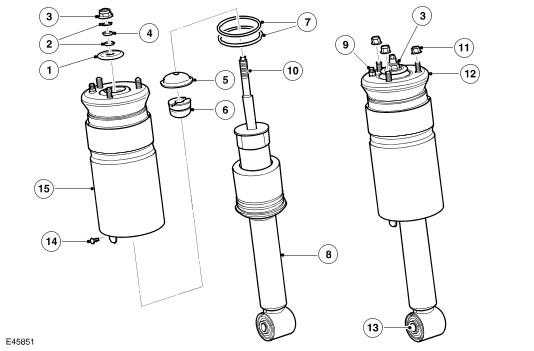

Damper Module - Air Suspension: Notes
| Item Number | Description |
|---|---|
| 1 | Rebound washer* |
| 2 | O-ring - damper rod (2 off)* |
| 3 | Self-locking nut* |
| 4 | Spacer - damper rod* |
| 5 | Bump washer |
| 6 | Spring aid* |
| 7 | O-ring - air spring sleeve support (2 off)* |
| 8 | Damper assembly* |
| 9 | Voss air fitting |
| 10 | Damper rod |
| 11 | Self-locking nut (3 off) |
| 12 | Top mount |
| 13 | Bush |
| 14 | Retaining pin - air spring assembly* |
| 15 | Air spring assembly* |
NOTE:
* shows service items
The damper module comprises an air spring assembly, top mount and a damper assembly. The damper and air spring are only serviceable as complete assemblies.
