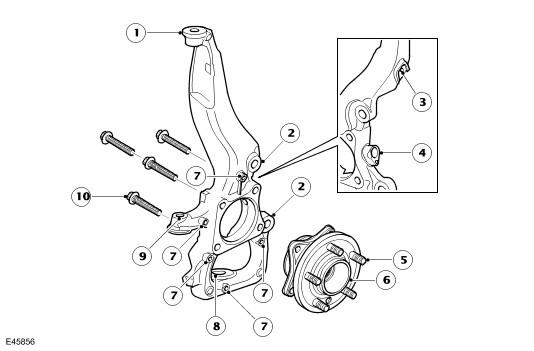

Wheel Knuckle, Hub And Bearing Assembly
| Item Number | Description |
|---|---|
| 1 | Upper control arm attachment |
| 2 | Brake caliper attachment holes |
| 3 | Brake hose bracket attachment point |
| 4 | Wheel speed sensor location |
| 5 | Wheels studs |
| 6 | Wheel hub |
| 7 | Brake disc dust shield attachment holes |
| 8 | Lower control arm ball joint attachment |
| 9 | Steering rack ball joint attachment |
| 10 | Wheel hub bolts (4 off) |
The wheel knuckle is a machined casting which is located between the ball joints of the upper and lower control arms. The knuckle has four clearance holes which allow for the fitment of four bolts which secure the wheel hub housing. A cast boss on the forward edge of the knuckle provides for attachment of the steering gear, tie rod ball joint.
The wheel hub and bearing assembly comprises the wheel hub housing, wheel hub and taper roller bearing. The wheel hub and bearing assembly is a non-serviceable component. Five M14 studs are pressed into the wheel hub and provide for the attachment of the road wheel with wheel nuts.
The wheel hub housing is a machined forging which houses a taper roller bearing. The housing has four threaded holes which provide for the attachment to the wheel knuckle with four bolts.
The wheel hub has a splined center bore which mates with corresponding splines on the half shaft. Rotation of the half shaft is passed, via the splines, to the wheel hub which rotates on the taper roller bearing.
