Front Stabilizer Bar: Installation

  1. Install the stabilizer bar.
    • Install the stabilizer bar through the LH side wheel arch.

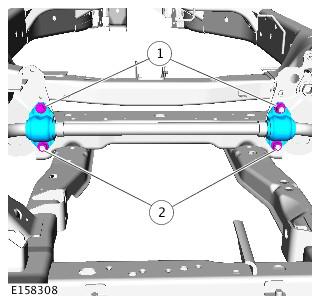

  2. Install the stabilizer bar bushing.
    • Tighten fixings 1 to 115 Nm (85 lb.ft).
    • Tighten fixings 2 to 115 Nm (85 lb.ft).
    • Tighten fixings 1 to 115 Nm (85 lb.ft).
    G00527207
  3. Install the front axle crossmember.
    • Tighten the 4 bolts to 115 Nm (85 lb.ft).
  4. Install the engine undershield. Refer to Engine Undershield article.
    5. NOTE: RH side only.
  5. Install the fender splash shield lower extension panel.
    • Install the 2 screws.
    • Install the 2 clips.
  6. Connect both stabilizer bar links to the stabilizer bar.
    • Install new nuts and tighten to 115 Nm (85 lb.ft).
  7. Install the wheels and tires.
    • Tighten the wheel nuts to 140 Nm (103 lb.ft).
