Lower Arm Rear Bushing: Installation

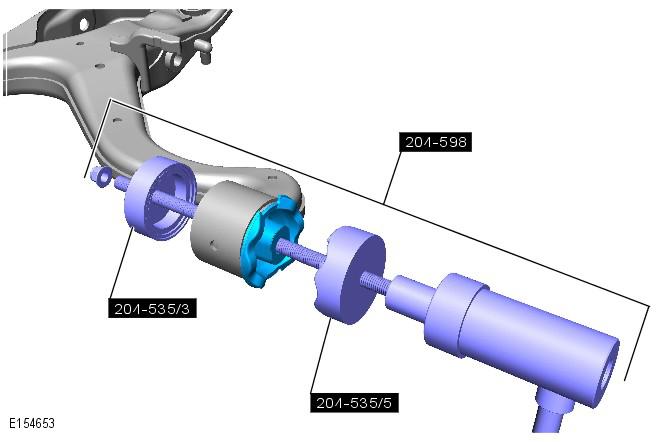

- Using the special tools install the bush.
- Install the lower front arm.

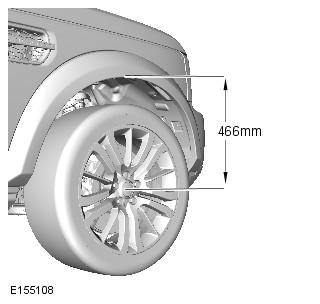

- Set the height distance between the center of the half shaft end and the edge of the fender trim to 466 mm (18.34") before tightening lower arm bolts.
- Attach the lower arm.
- Align the bolts to the marks made previously.
- Tighten the lower arm camber bolts to 275 Nm.
- Tighten the shock absorber and spring assembly to lower arm bolt to 300 Nm.
- Refit the trim.
- Carry out the wheel alignment procedure.
CAUTION:
Make sure correct alignment is maintained whilst carrying out the step.
NOTE:
Do not tighten the bolts at this stage.
