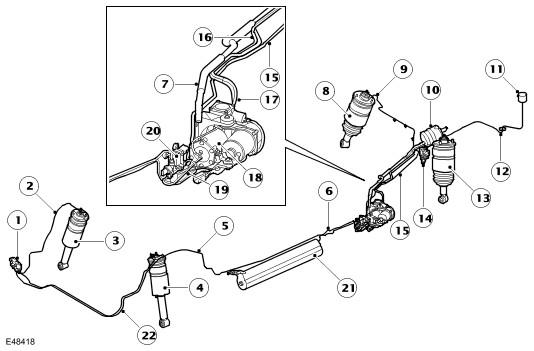

Air Harness
| Item Number | Description |
|---|---|
| 1 | Front axle valve block |
| 2 | Pipe - Front axle valve block to front RH air spring damper module |
| 3 | Front RH air spring damper module |
| 4 | Front LH air spring damper module |
| 5 | Pipe - Reservoir valve block to front axle valve block |
| 6 | Pipe - Reservoir valve block to reservoir |
| 7 | Pipe - Exhaust |
| 8 | Rear RH air spring damper module |
| 9 | Pipe - Rear axle valve block to rear RH air spring damper module |
| 10 | Air silencer assembly |
| 11 | Air inlet filter |
| 12 | Pipe - Main inlet |
| 13 | Rear LH air spring damper module |
| 14 | Rear axle valve block |
| 15 | Pipe - Reservoir valve block to rear axle valve block |
| 16 | Pipe - Compressor inlet |
| 17 | Pipe - Compressor exhaust |
| 18 | Air supply unit |
| 19 | Pipe - Air supply unit to reservoir valve block |
| 20 | Reservoir valve block |
| 21 | Reservoir |
| 22 | Pipe - Front axle valve block to front LH air spring damper module |
The air harness comprises ten separate nylon pipes which are connected between the system components with Voss connectors. The pipes have the following diameters:
| Pipe | Diameter |
|---|---|
| High pressure pipes | 6 mm |
| Compressor inlet pipe | 8 mm |
| Inlet filter to silencer | 8 mm |
| Compressor exhaust pipe | 10 mm |
| Silencer exhaust pipe | 19 mm |
If a pipe becomes damaged, an in-line connector is available for repair purposes. The pipes are secured to the body and the chassis with a number of plastic clips.
