Fuel Tank Filler Pipe: Removal
WARNING:
The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
WARNING:
After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.
WARNING:
This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the battery ground cable. Refer to Specifications information.
- Raise and support the vehicle.
- Refer to Fuel Tank Draining information.
- Refer to Fuel Filler Door Assembly information.
- Remove the RH rear wheel and tire.
- TORQUE: 140 Nm
- Remove the fender splash shield.

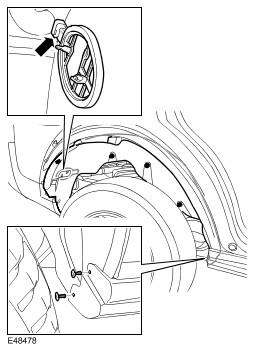

- See figure.
- Remove the tamper proof cover from the fuel tank filler pipe hose clip.
- See figure.
-
- TORQUE: 4 Nm
- See figure.
-
- TORQUE: 4 Nm
WARNING:
Make sure to support the vehicle with axle stands.
NOTE:
Discard the retaining clip.
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
