Oil Pan Extension: Installation

  1. Torque: 10 Nm
    GJ0012865
    2. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    CAUTION: Use only a plastic scraper when removing the sealing material.

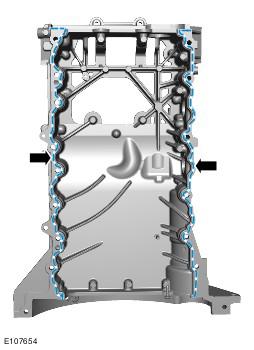

    • Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
      GJ0012866
    3. NOTE: Tighten the bolts in the indicated sequence.
  3. Torque: 25 Nm
    GJ0012867
    4. CAUTION: Make sure that the mating faces are clean and free of foreign material.
  4. Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
    GJ0012159
    5. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Install new lower timing cover.
  5. Install the bolts, but do not tighten fully at this stage.

    Lower Timing Cover Alignment tool (303-1433)

    GJ0012160
    6. NOTE: Tighten the bolts in the indicated sequence.
    • Torque:

      M8 20 Nm

      M6 12 Nm

      GJ0012161
  7. Remove the special tools.
  8. Torque: 12 Nm
    GJ0012162
    • Rear Crankshaft Seal Installer (303-1442)
    • Rear Crankshaft Cover Alignment Tool (303-1443)
      GJ0012812
  10. Remove the special tool.
    11. NOTE: Tighten the bolts in the indicated sequence.
  11. Torque: 11 Nm
    GJ0012813
  12. Torque: 11 Nm
    GJ0012814
    • Torque: 11 Nm
      GJ0012862
    14. NOTE: The high-pressure fuel pumps are removed from the illustration for clarity.
  14. See figure
    GJ0012854
    15. NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.
  15. See figure
    GJ0012868
    16. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.
    • Torque: 11 Nm
      GJ0012856
  17. Loosen the Torx screws half a turn each.
    GJ0012856
  18. See Figure
    GJ0012869
    19. NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.
  19. See figure
    GJ0012870
    20. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.
    • Torque: 11 Nm
      GJ0012859
  21. Loosen the Torx screws half a turn each.
    GJ0012859
  22. See Figure
    GJ0012871
    23. CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.
    NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.
    • Torque: 11 Nm
      GJ0012856
    24. CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.
    NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.
    • Torque: 11 Nm
      GJ0012859
    25. CAUTION: Install new high-pressure fuel supply lines.
    CAUTION: Lubricate only the union threads with clean engine oil.
    NOTE: Remove and discard the blanking caps.
    NOTE: Install the bolt and unions fully finger tight before final tightening.
  25. Do not fully tighten at this stage.
    GJ0012851
    • Torque: 21 Nm
      GJ0012872
    • Torque:

      Unions (1) 21 Nm

      M6 (2) 11 Nm

      M8 (3) 25 Nm

      M5 nut (4) 6 Nm

      GJ0012873
    28. NOTE: Install the bolt and unions finger tight before final tightening.
    NOTE: Remove and discard the blanking caps.
    • Torque:

      Unions 21 Nm

      M6 11 Nm

      GJ0012852
    29. CAUTION: Make sure that a new component is installed.
    • Torque: 21 Nm
      GJ0012874
  30. Torque:

    Unions 21 Nm

    M6 8 Nm

    GJ0012853
  31. See Figure
    GJ0012875
  32. Torque: 25 Nm
    GJ0012137
  33. See Figure
    GJ0012850
    34. CAUTION: Install all the bolts finger tight before final tightening.
  34. Torque: 25 Nm
    GJ0012846
  35. See Figure
    GJ0012847
  36. Torque: 12 Nm
    GJ0012845
    37. CAUTION: Install all the bolts finger tight before final tightening.
    NOTE: Tighten the bolts in the indicated sequence.
  37. Torque: 48 Nm
    GJ0018837
    • Install the special tool.
    • Locking Tool (303-1448)
      GJ0012194
    39. CAUTION: Install all the bolts finger tight before final tightening.
    CAUTION: The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    CAUTION: Install the bolts in the noted position.
    NOTE: Make sure that the crankshaft is not rotated.
    NOTE: Make sure the crankshaft and flexplate mating faces are clean before installation.
    NOTE: Tighten the retaining bolts working diagonally.
  39. Torque:

    Stage 1: 45 Nm

    Stage 2: 90°

    GJ0012815
    • Remove the special tool.
    • Locking Tool (303-1448)
      GJ0012194
  41. Torque: 48 Nm
    GJ0018840
    42. NOTE: Install the bolt finger tight before final tightening.
  42. Torque: 40 Nm
    GJ0012149
  43. Torque: 25 Nm
    GJ0012148
  44. Torque: 25 Nm
    GJ0012147
  45. Refer to: CRANKSHAFT PULLEY .
  46. Installer, Stretchy Belt (303-1500)
    GJ0012526
    • Install the cooling fan belt.
    • Rotate the engine clockwise twice, making sure that the belt is seated on both pulleys correctly.
    • Remove the special tool.
      GJ0012527
  48. Torque: 25 Nm
    GJ0012521
  49. Refer to: ENGINE
  50. Lower the vehicle.
  51. Connect the battery ground cable. Refer to SPECIFICATIONS information.
